QL-2000 PEM Hydrogen Electrolyser 1000W Hydrogen Generator for Fuel Cell Testing

Name: QL2000 PEM Hydrogen Electrolyser 1000W Hydrogen Generator for Fuel Cell Testing
Brand: Saikesaisi
Price: 5 USD

Buy cheap QL-2000 PEM Hydrogen Electrolyser 1000W Hydrogen Generator for Fuel Cell Testing product

Model Number : QL

Weight : 25 KG, 25KG

Power supply : 200-240V or 100-120V , 50-60Hz

MOQ : 1 UNIT

H2 purity : 99.999%

Packing Box : wooden box

Dimension : 450*400*400mm

Technology : PEM

Place of Origin : Shandong, China

Dimension(L*W*H) : 485x390x370mm

Price : $5,400.00/sets 1-4 sets

H2 max flow rate : 2000ml/min

Certificate : CE, ISO9001:2008

Warranty : 1 Year

MOQ : 1 piece

Warranty of core components : 12 months

Brand Name : Saikesaisi

Production Rate : 99.999% Purity

Contact Now

Product Description

QL-2000 PEM Hydrogen Electrolyser 1000W Hydrogen Generator for Fuel Cell Testing

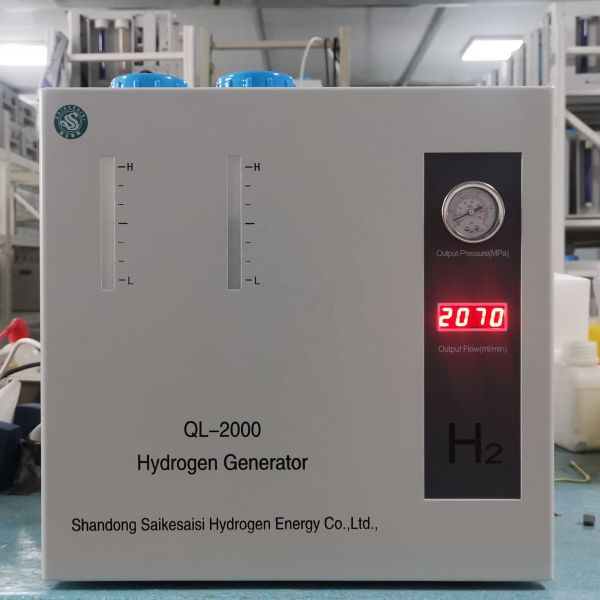

QL-2000 PEM Hydrogen Generator

Technical Characteristics

The series hydrogen generators producing highly pure hydrogen by utilizing PEM technology to electrolyze pure water (without adding alkali), are light, highly-effective, energy-saving, and environmental protection. They are advanced technology patented products.

Structural Features

1. Zero polar distance and highly active SPE catalytic electrodes are used.
2. Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.
3. Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, corrosion resistance and bearing deactivation.
4. Complete, mature and credible automatic control system.

Functions and Characteristics

1. Electrolysis of pure water(without adding alkali)to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
2. Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.
3. Hydrogen is produced with stable pressure and output, output of hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.
4. Power consumption is less, and the electrolysis is efficient.

Specification

Model	QL-2000
H2 flow rate	0-2000ml/min
H2 purity	99.999%
H2 Pressure	0-4 Bar or 0-7 Bar (Customized pressure is acceptable)
Power supply	200-240V or 100-120V , 50-60Hz
Technology	PEM /SPE
Certificate	CE, ISO9001:2008
Warranty	1 Year
Weight	25KG
Dimension	48x39x37cm

Application

This kind of products can also be used in many application area.

Such as lab hydrogenation, supplying hydrogen for metal hydride alloy,

flame reduction,
reduction air protection,

solar power, storing power for wind power generation,

Fuel Cell Test etc.

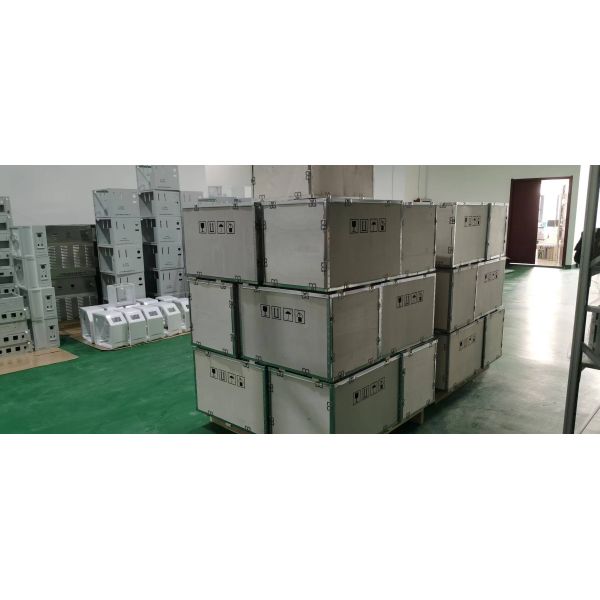

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Shandong Saikesaisi Hydrogen Energy Co., Ltd. was founded in 2007, and has been deeply engaged in the research and production of PEM hydrogen generators for 15 years. The company has a perfect R & D center, equipped with functional automatic laser cutting, welding, CNC machining centers and production workshops and facilities such as general assembly, instrument control, assembly, testing, etc. the annual production capacity of hydrogen production equipment is more than 200 sets. QLS-H and QLS-M series hydrogen generators have compact system structure, reasonable process flow, high degree of automation, high cost performance (one button startup unattended), and low power consumption. The single electrolysis cell can produce the hydrogen gas in the ranges from 0.5 Nm3/h to 500 Nm3 / h. It is the only one in China to achieve the full model coverage of PEM hydrogen generators, and its main technical indicators meet or approach national standards.

PEM hydrogen production technology is an efficient way of coupling renewable energy to produce hydrogen. QLS-H and QLS-M series PEM hydrogen generators have been widely used in high-end laboratories, electronic semiconductor plants, power plant hydrogen stations, hydrogen production stations, grain cutting and peak filling energy storage and other fields. because of their advantages such as high purity of hydrogen, high direct hydrogen pressure, fast start-up response and long service life. By 2022, we have provided products and services for hundreds of well-known enterprises at home and abroad, such as China National Petroleum Corporation, China Petrochemical Corporation, State Grid Corporation of China, Hyundai Group, etc., and its products have been exported to more than 30 countries and regions, such as Japan, South Korea, Germany,USA etc.
Our staffs will always adhere to strive for quality and innovation,regard “Sincerity,Carefulness,Loyalty and Perseverance” as our enterprise spirit and make this green energy product and famous brand at home and abroad.
